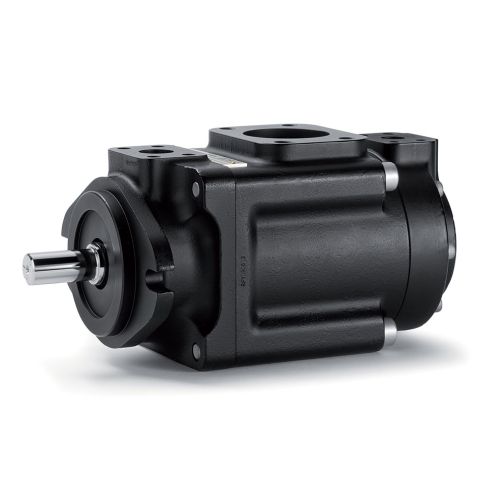

PFED-43056/036/2
ATOS
Code
PFED-43056/036/2
In stock
SKU
PFED-43056/036/2
| Series | PFED |
|---|---|
| Application | Industrial |
| Mounting flange | SAE B 2 bolt |
| Pump rotation | Bidirectional |
| Screw threads | Metric |
| Seal kit | NBR |
| Product type | FIXED DISPLACEMENT VANE PUMPS |
| Net weight (kg) | 24.5 |
| S Dimension (inch) | 2" 1/2 |
| P1 Dimension (inch) | 1" |
| P2 Dimension (inch) | 3/4" |
| Displacement (cm³/rev) | 91.4 |
| Speed (rpm) | 2500 |
| Nominal max pressure (bar) | 210 |
